High Pressure Pumps According to API Standards

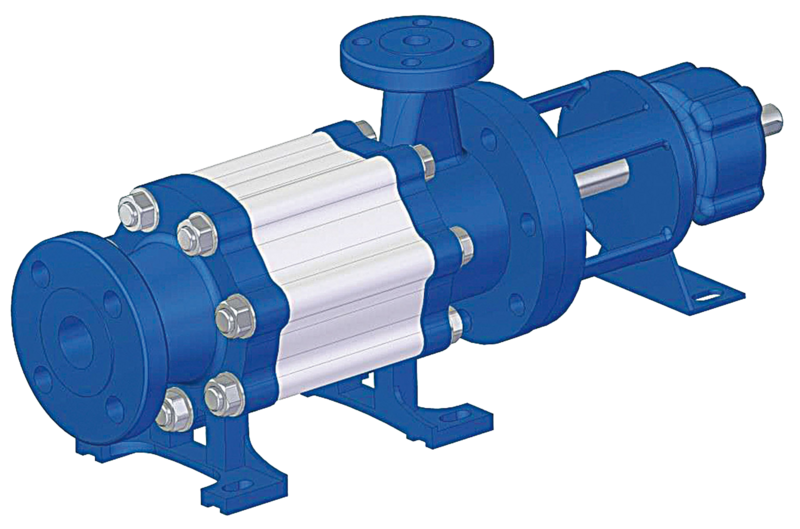

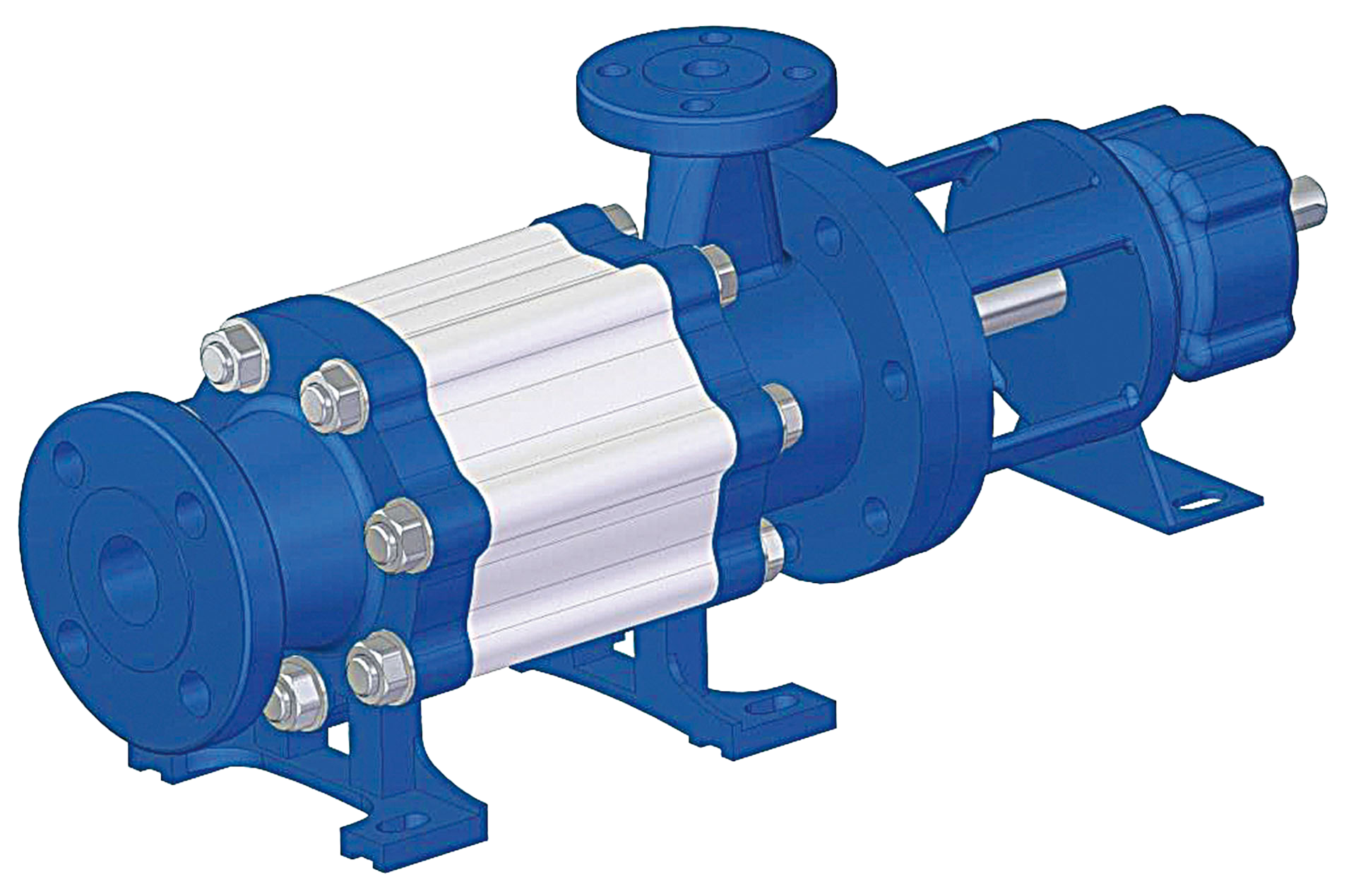

SHP

With extremely low NPSH-values
Capacity0,4 up to 8,5 m3/h
Pressure Headup to 1.200 m
Nominal Pressureup to 100 bar
Temperature-20 °C up to +150 °C
Suction Heightnon-self priming
Speedmax. 3600 1/min
MaterialsS-6, S-8, C-6, A-8
Shaft SealMechanical cartridge seal according to API 682 or others
SpecialsLow flow and high heads - no pulsation

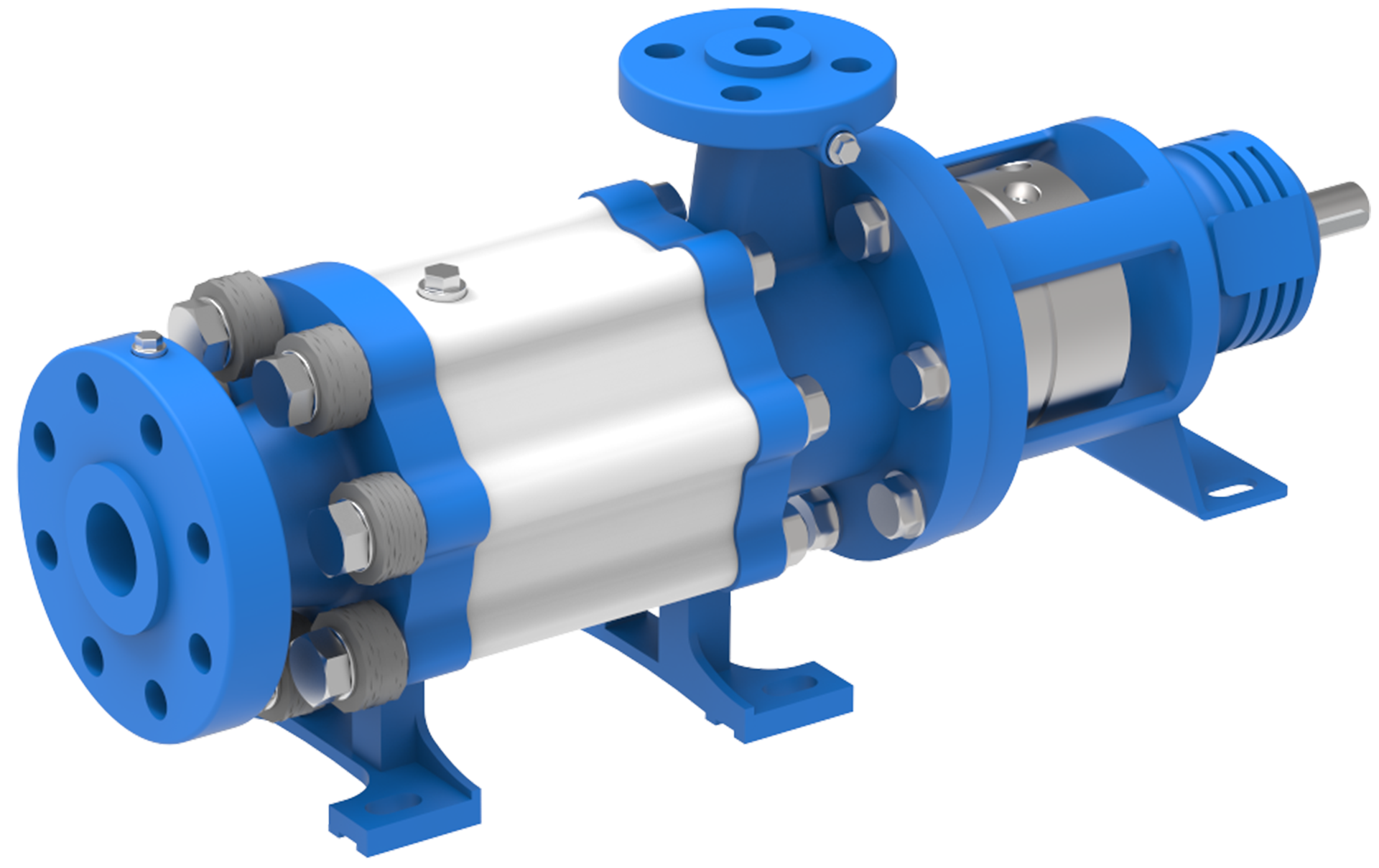

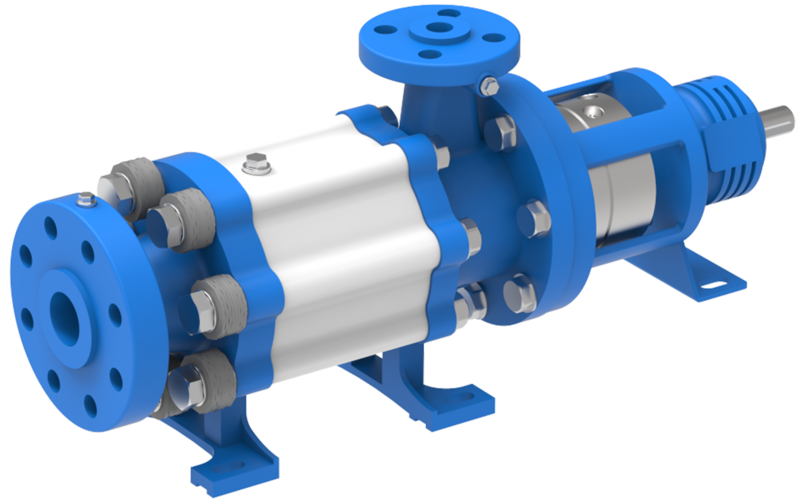

SHPmarine

With extremely low NPSH-values
Capacity1,5 up to 6,5 m3/h
Pressure Head250 up to 1000 m
Nominal Pressure65 bar (LPG) / 95 bar (NH3)
Temperature-55 °C up to +60 °C
Suction Heightnon-self priming
Speed950 up to 3600 1/min (VFD operation)
MaterialsA-8 or TT8 (Special design)
Shaft SealDouble cartridge mechanical seal (dry run)
SpecialsMarine approval (type approval)
